Experience the ultimate shower solution with zero threshold shower bases. Crafted from solid sheet-molded compound material with sturdy structural ribs, it ensures durability and stability. Field trimmable for customization. Install with thinset mortar for a reliable, water-tight foundation. With a slip-resistant slate finish, it's perfect for easy entry and flush shower floor aesthetics. Compatible with single, double, or triple threshold installations, it offers versatility for any bathroom.
- ZERO THRESHOLD: shower floor creates a virtually flush entry to the shower; actual threshold measurement is 1-in but when installed, the difference against flooring is approximately 1/8-in
- TRIMMABLE: trim up to 4-in in width away from either side of drain or up to 2-in in depth away from drain without any loss of integrity

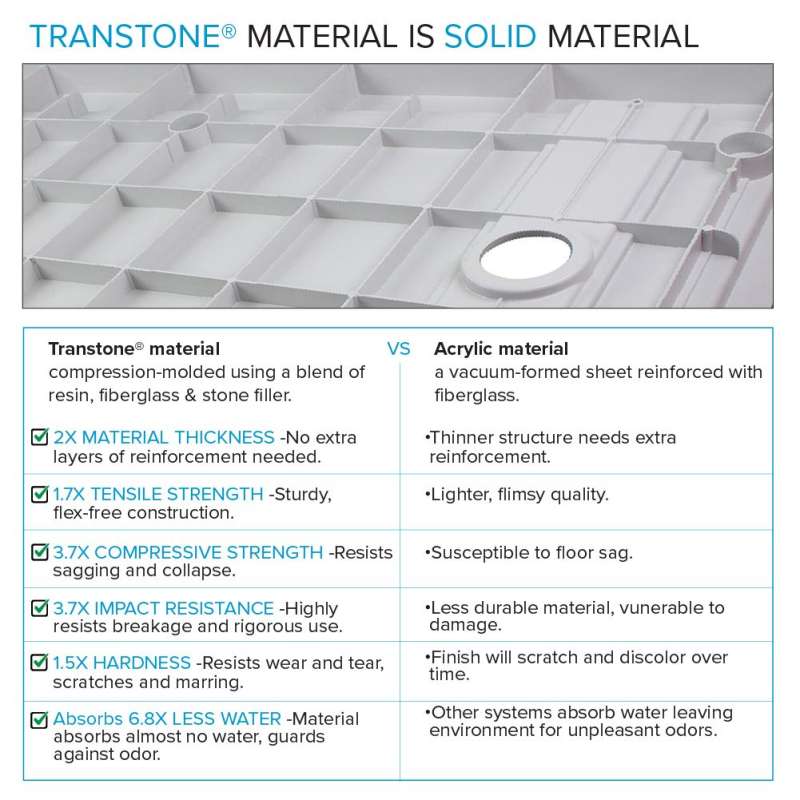

- MATERIAL: sheet molding compound (SMC) material is made from a composite material composed of resin, fiberglass, and stone filler to create a lightweight and durable material that is stronger than acrylic
- 3-IN-1 THRESHOLD: versatile base can accommodate a single, double or triple threshold installation

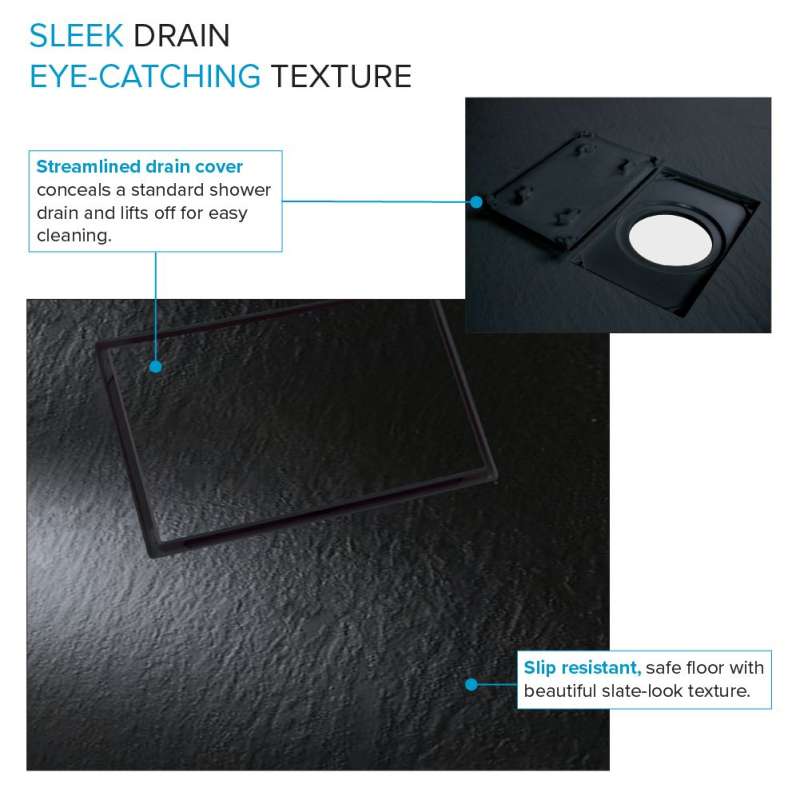

- DRAIN: center drain location with SMC color-matched drain cover that conceals a conventional 2-in shower drain, creating a pleasing uniform and minimalist design; drain not included
- WATERPROOF: includes three 1-in high aluminum tiling flanges which can be attached to the shower base using epoxy or 100% silicone to ensure no water will sneak in the cracks between your shower base and walls
- INSTALLATION: install atop a thinset mortar mix; once the base is level and drain is installed, install your wall substrate material 1/4-in above the aluminum flanges and install the shower walls on top of the base with added silicone
- STRENGTH AND DURABILITY: solid material all the way throughout the base, which is beneficial for protection against scratches, nicks and gouges; has 4 times the impact resistance and 2.5 times the temperature resistance as other bases

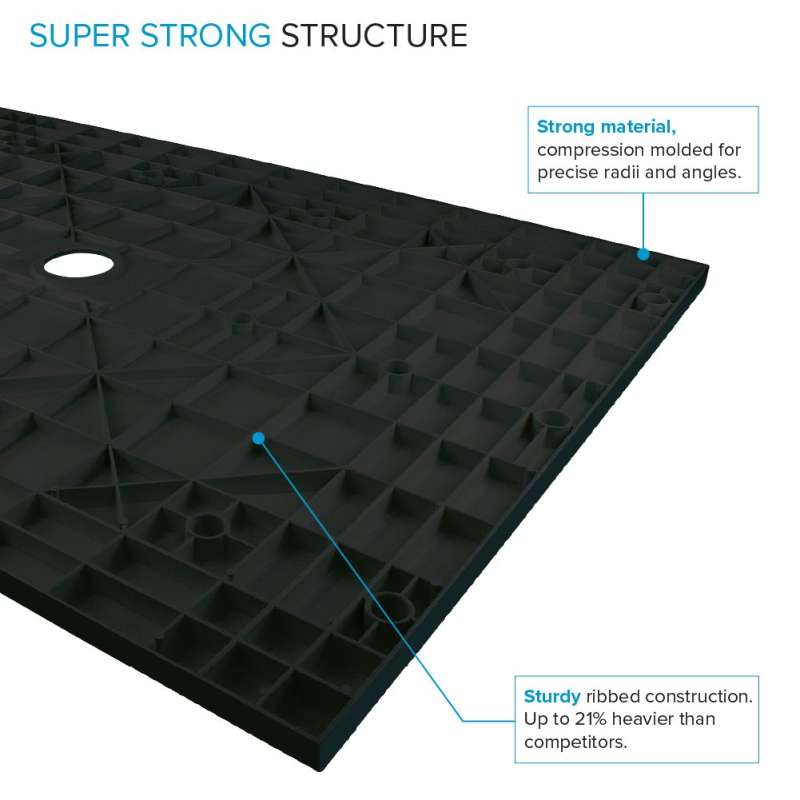

- SUPPORTIVE FOUNDATION: the back side of the base employs structural ribbing to easily achieve a perfectly level base while maintaining superb strength
- SAFETY: lightly textured slate floor is slip-resistant and maintains an easy-to-clean surface
- OPTIONAL THRESHOLD: Modify your bathing experience to suit your own taste by adding a threshold to form a conventional base (sold separately - model T60 and T80)
- WARRANTY: covered by Transolid’s hassle-free 10-year limited residential or 3-year commercial warranty
Guides & Documents | Spec Sheet Installation PDF |
Brand | Transolid |
Front To Back Dimension (in) | 33 to 40 |
Left To Right Dimension (in) | 70 or Greater |
Product Type | Shower Base |
Collection | Trimslate |
Color | Black |
Width (in) | 39.4 |
Length (in) | 78.7 |
Height (in) | 2 |
Material | SMC (Sheet Molding Compound) |
Shape | Rectangular |
Color/Finish Family | Blacks |
Weight (lb) | 65 |
Warranty | 10 Year Limited Residential / 3 Year Limited Commercial |
Ada Compliant | Yes |
Configuration | Center |
Drain Assembly Included | No |
Drain Location | Center |
Drain Size (in) | 2 |
Installation | Alcove, Corner, or Peninsula |
Integrated Seat | No |
Residential/Commercial | Residential and Commercial |
Threshold | Zero |
Threshold Height (in) | 1 |
